RL10N0300-Z22

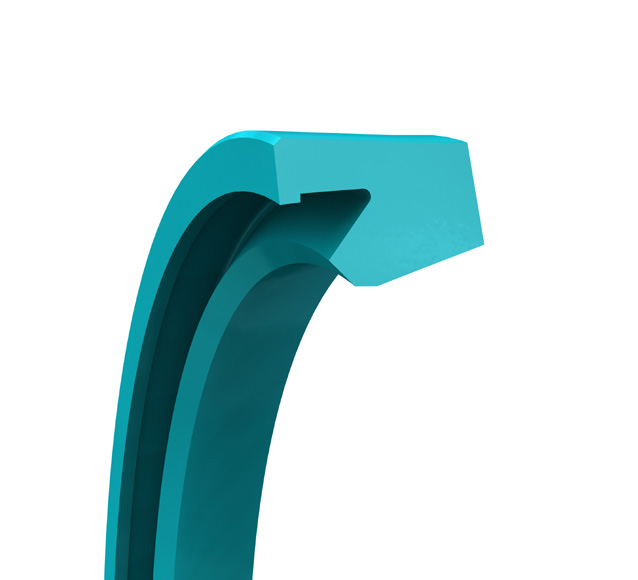

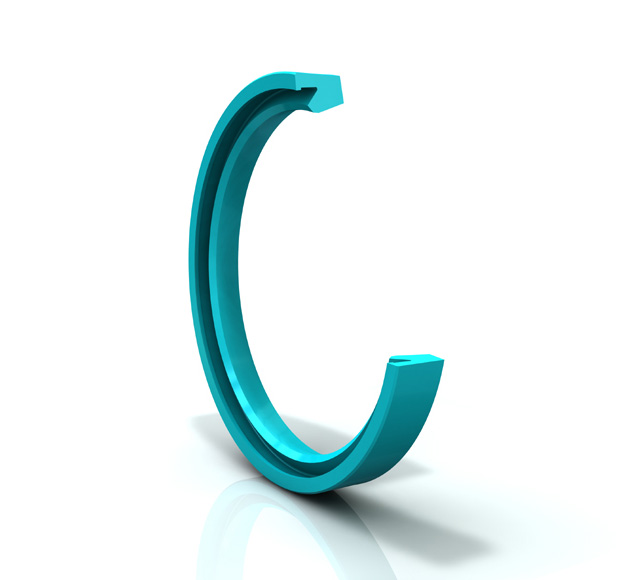

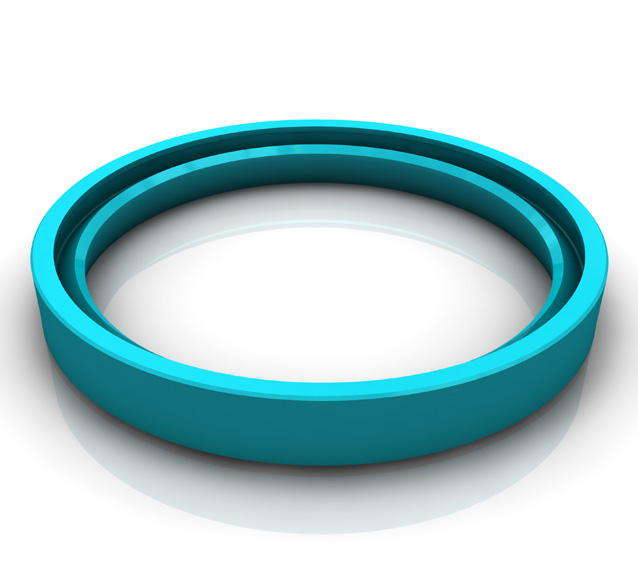

Zurcon® - L-Cup - RL10N0300-Z22

Zurcon® L-Cup® is a single acting polyurethane rod seal with a unique design offering a hydrodynamic backpumping ability over the complete working pressure range.

Material Properties:

Material Type PUR

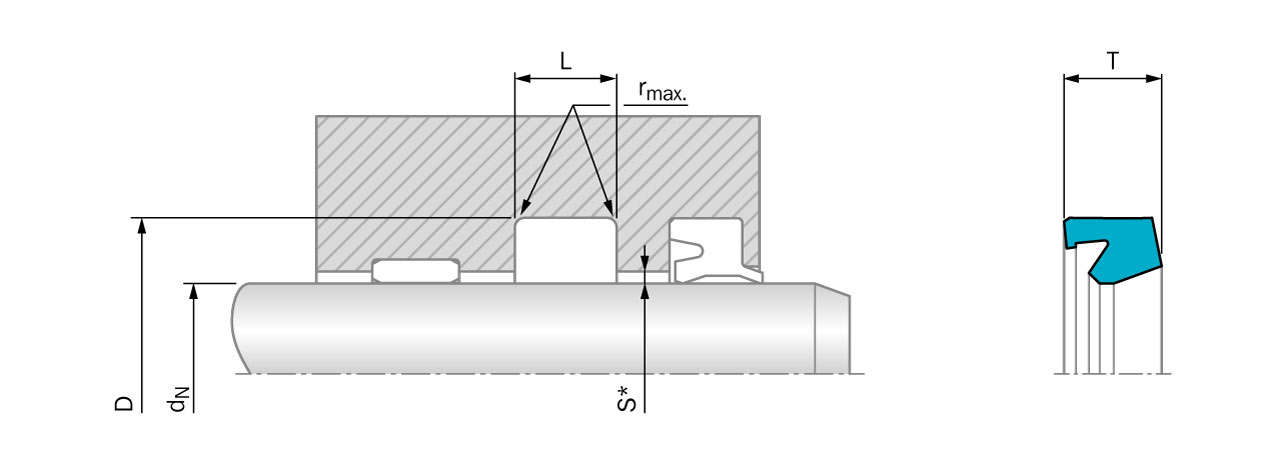

Installation Dimensions:

Rod dia., dN f8 30  mm

Groove dia., D H10 38  mm

Groove width, L +0,25 8  mm

Radius, r max. 0.3  mm

Ring width T 7.2  mm

Zurcon® - L-Cup

Material Information for the product(s) on this page

Z22

Material data sheet

Colour:

Darkturquoise

Basic Material:

PUR

Hardness:

93 (Shore A)
