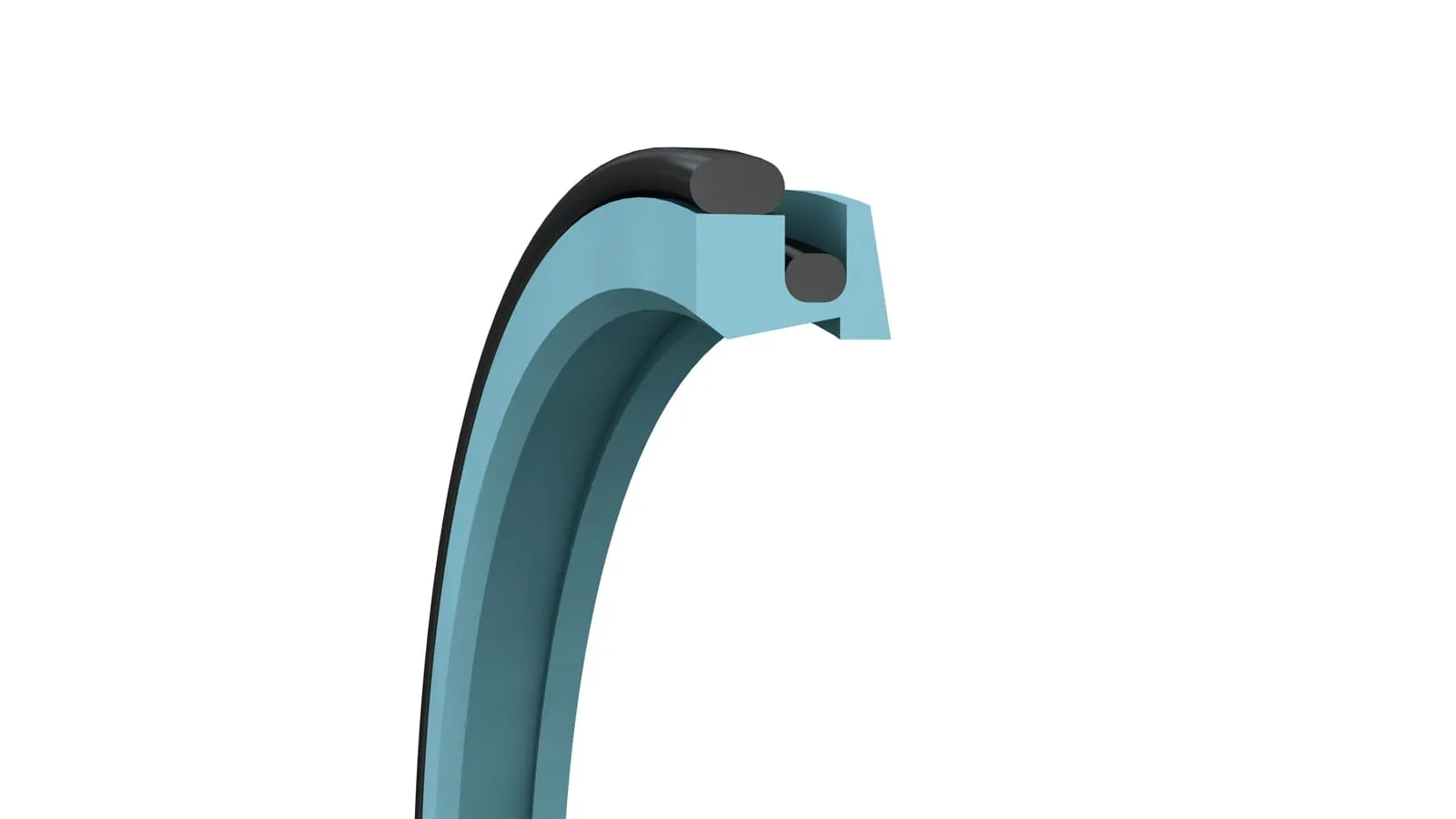

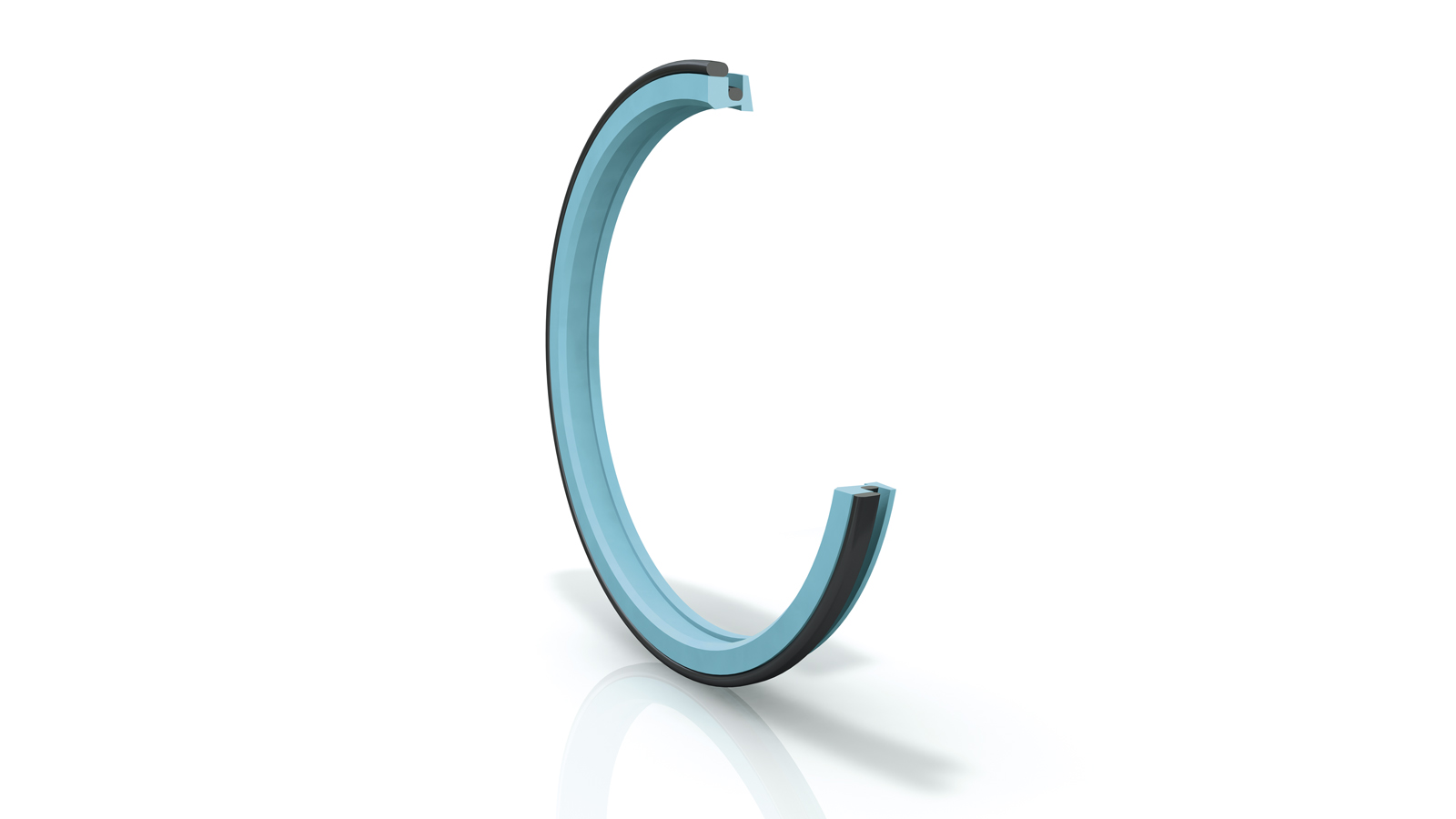

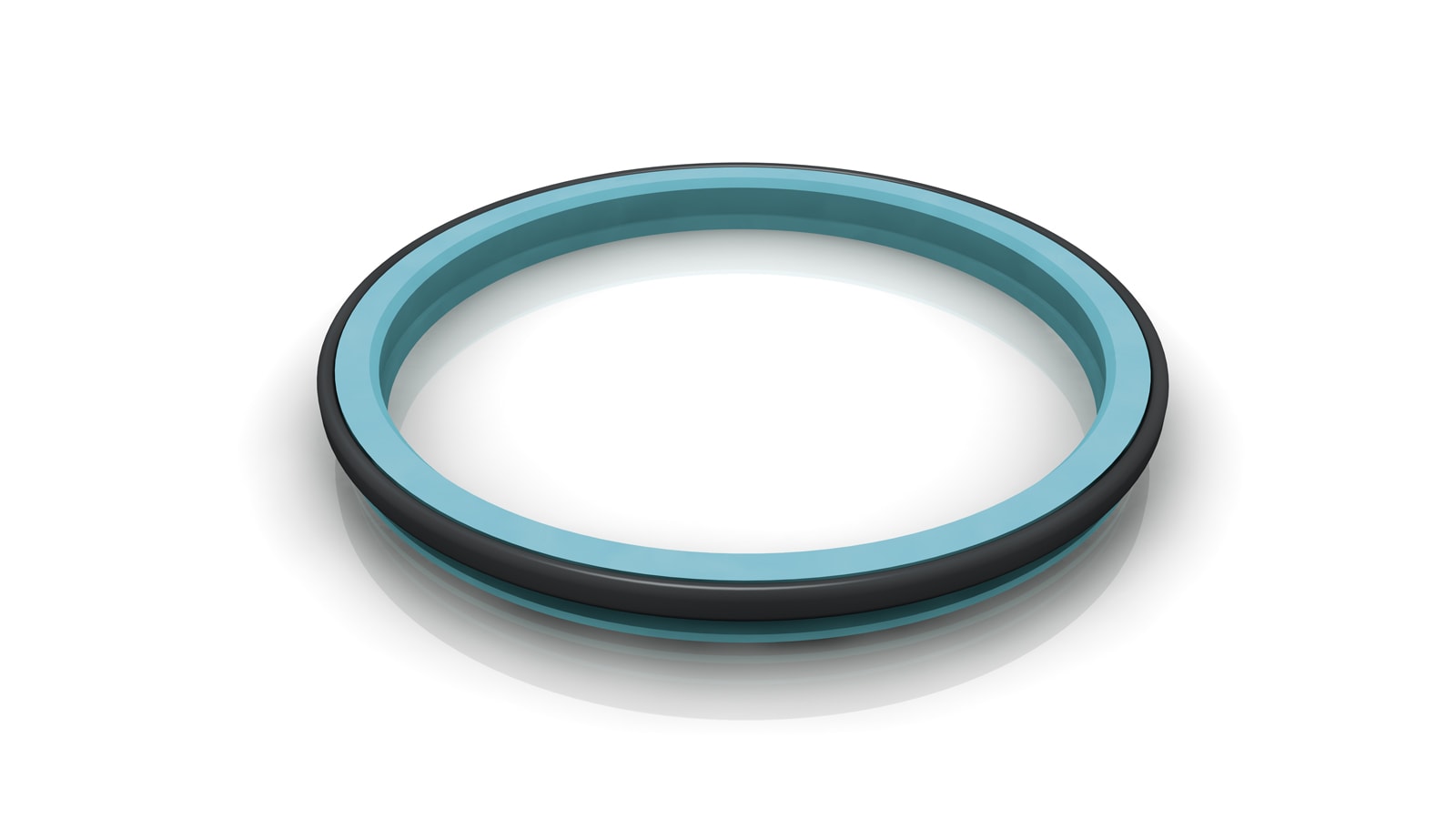

Scrape/ Excluder®Turcon®:

TSS Article Number (3 to 9)G202700

Signature StandardWEG202700-T46

Type of Article0

Quality (10th Digit)-

Root Groove Thickness12.1  mm

Root Groove Inside Diameter270  mm

Root Groove Outside Diameter294.2  mm

Root Ring Inside Diameter268.9  mm

Root Groove Width6.3  mm

Ring Length0  mm

Groove Diameter Outside294.2  mm

Groove Diameter Inside270  mm

Groove Width6.3  mm

Groove Thickness12.1  mm

Ring Thickness7.85  mm

Ring Width13.3  mm

Legacy ID from KOM2WEG202700-T46

Root Ring Width13.3  mm

Root Ring Outside Diameter284.6  mm

Root Ring Length0  mm

Article GroupWE

Root Ring Thickness7.85  mm

Seals Helsingor Material Class:

Seal Tube OD Tolerance From287.6  mm

Material Number200000051868

Seal Tube OD Tolerance Max50  mm

Seal Tube ID Tolerance Min-50  mm

Seal Tube ID Tolerance Max-3  mm

Seal Tube OD Tolerance To334.6  mm

Seal Tube ID Tolerance To265.9  mm

Seal Tube ID Tolerance From218.9  mm

Class Dependencies200000051868

Ring Diameter Outside284.6  mm

Compound codeT46

Ring Diameter Inside268.9  mm

Compound Type110

Seal Tube OD Tolerance Min3  mm
