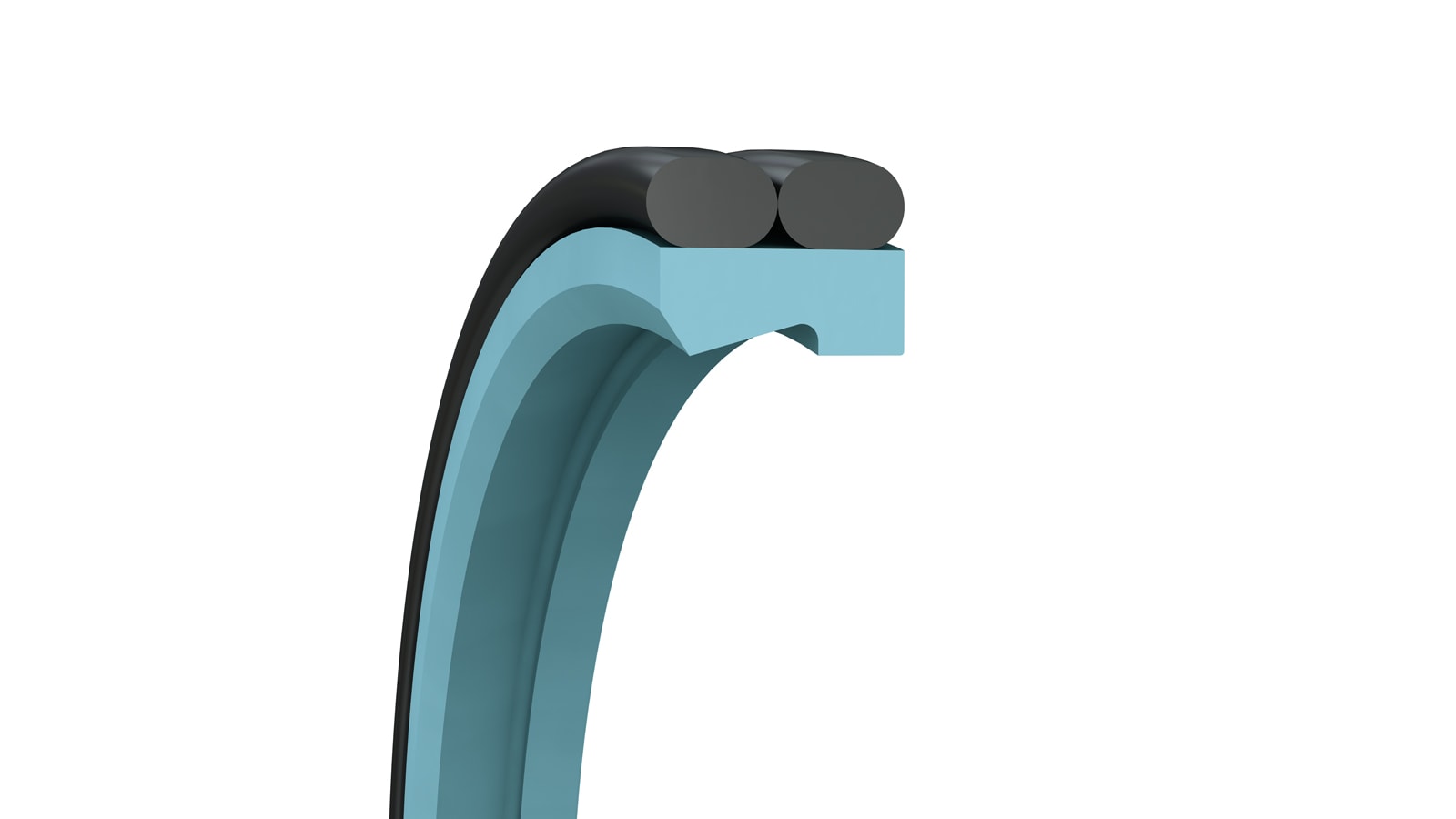

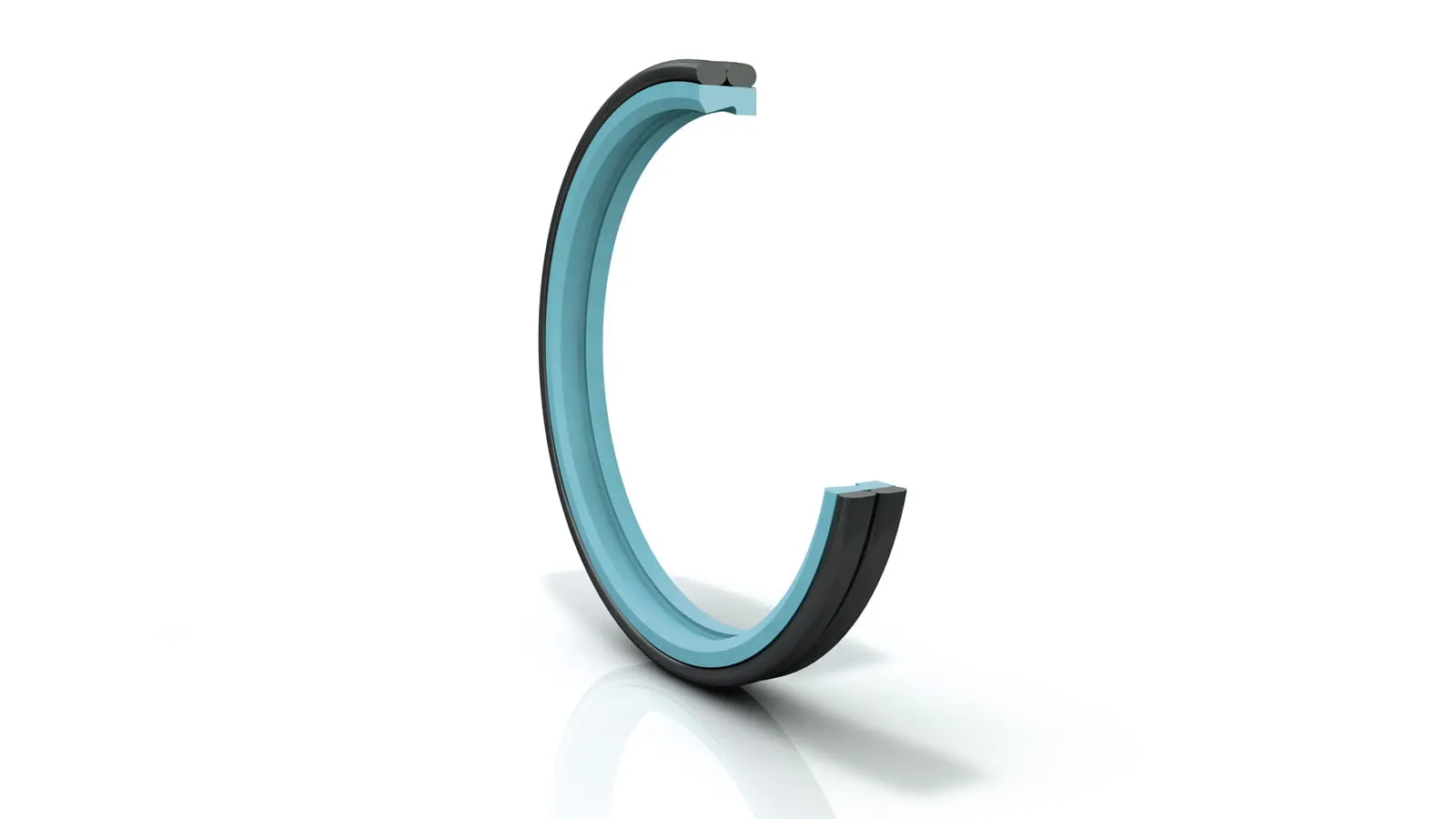

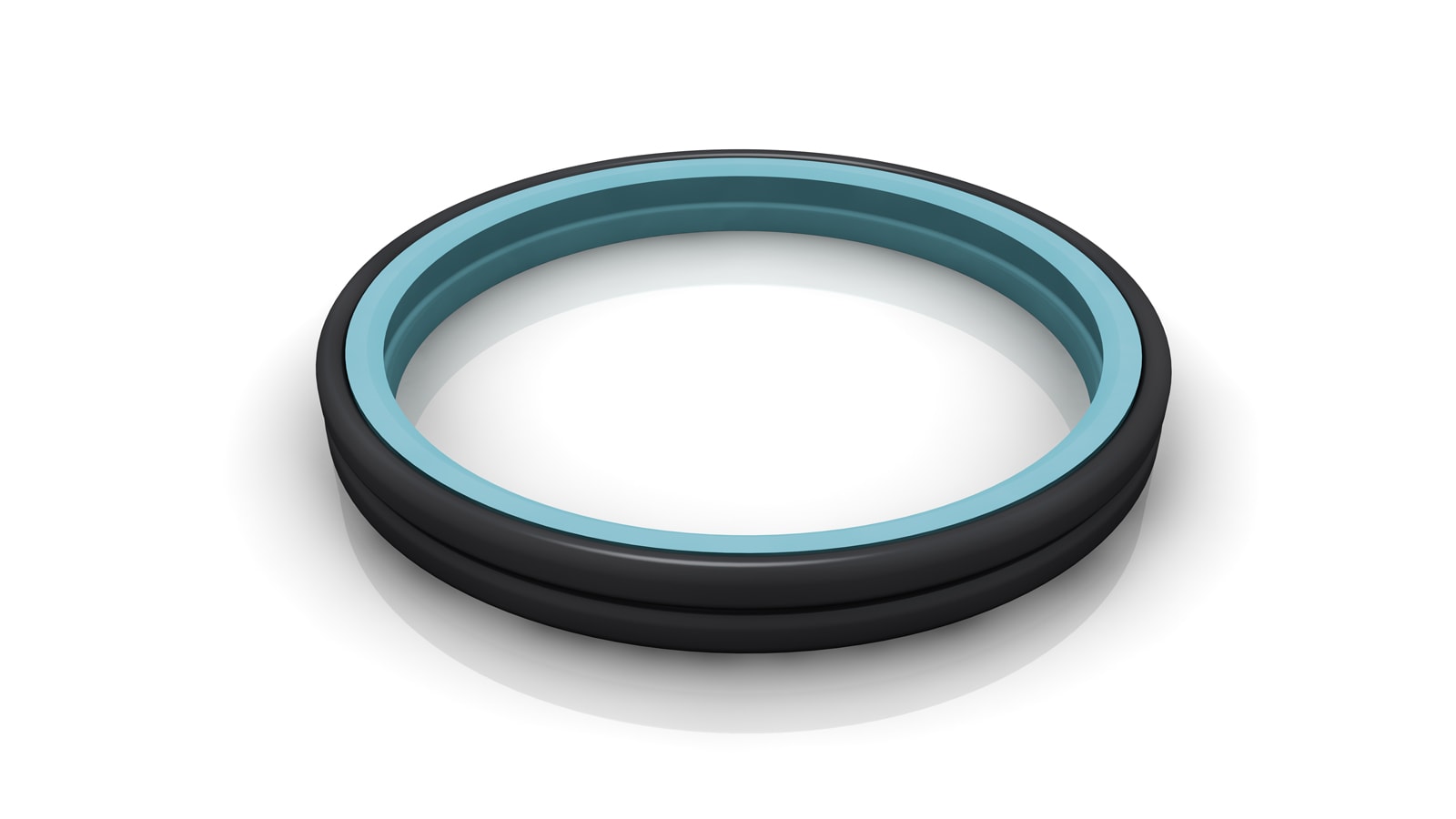

Scrape/ Excluder®Turcon®:

TSS Article Number (3 to 9)F000200

Signature StandardWEF000200-T40

Type of Article0

Quality (10th Digit)-

Root Groove Thickness3.8  mm

Root Groove Inside Diameter20  mm

Root Groove Outside Diameter27.6  mm

Root Ring Inside Diameter19.5  mm

Root Groove Width4.2  mm

Ring Length0  mm

Groove Diameter Outside27.6  mm

Groove Diameter Inside20  mm

Groove Width4.2  mm

Groove Thickness3.8  mm

Ring Thickness2.45  mm

Ring Width3.9  mm

Legacy ID from KOM2WEF000200-T40

Root Ring Width3.9  mm

Root Ring Outside Diameter24.4  mm

Root Ring Length0  mm

Article GroupWE

Root Ring Thickness2.45  mm

Seals Helsingor Material Class:

Seal Tube OD Tolerance From25.7  mm

Material Number200000051831

Seal Tube OD Tolerance Max16  mm

Seal Tube ID Tolerance Min-16  mm

Seal Tube ID Tolerance Max-1.3  mm

Seal Tube OD Tolerance To40.4  mm

Seal Tube ID Tolerance To18.2  mm

Seal Tube ID Tolerance From3.5  mm

Class Dependencies200000051831

Ring Diameter Outside24.4  mm

Compound codeT40

Ring Diameter Inside19.5  mm

Compound Type110

Seal Tube OD Tolerance Min1.3  mm
