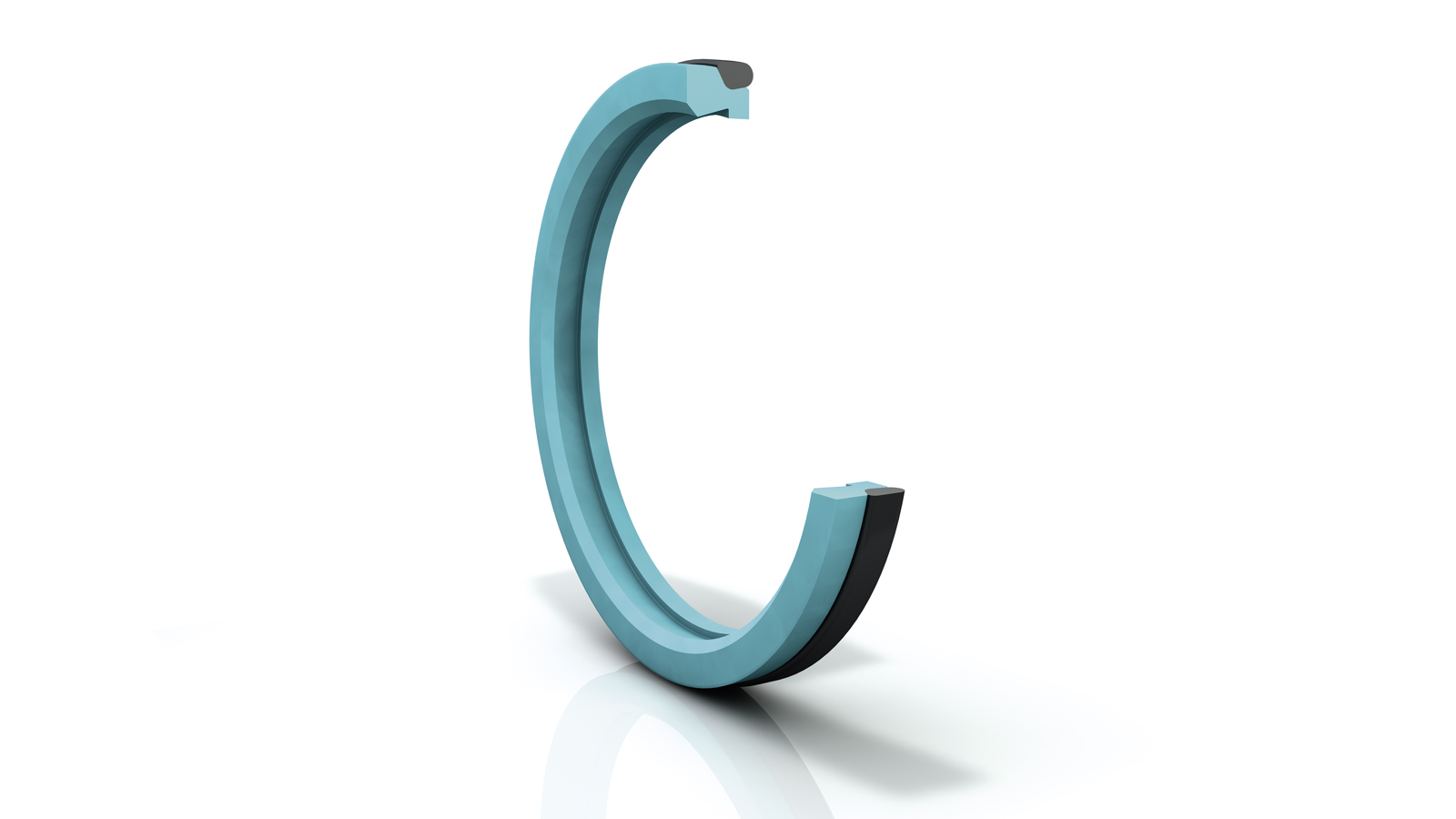

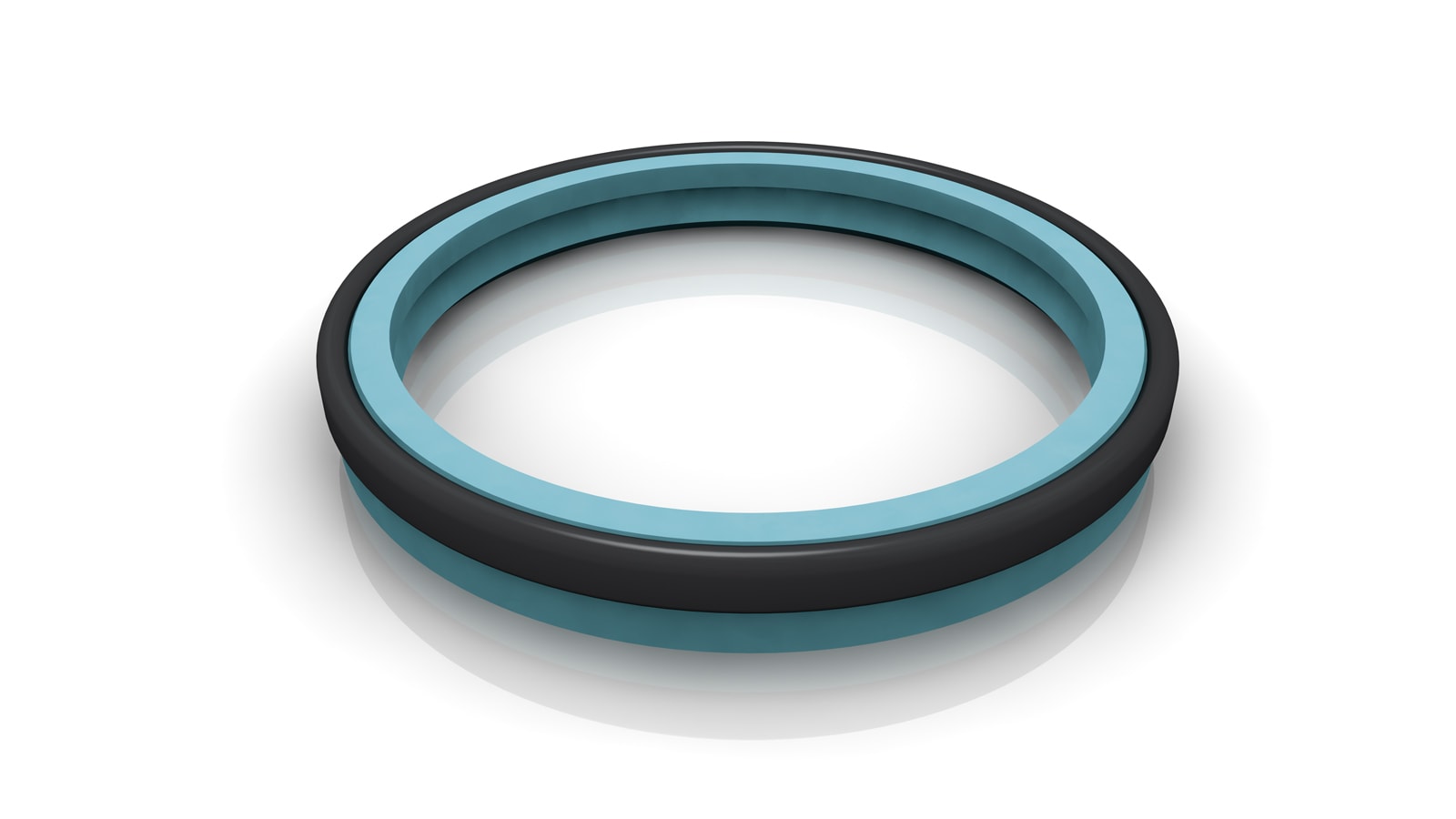

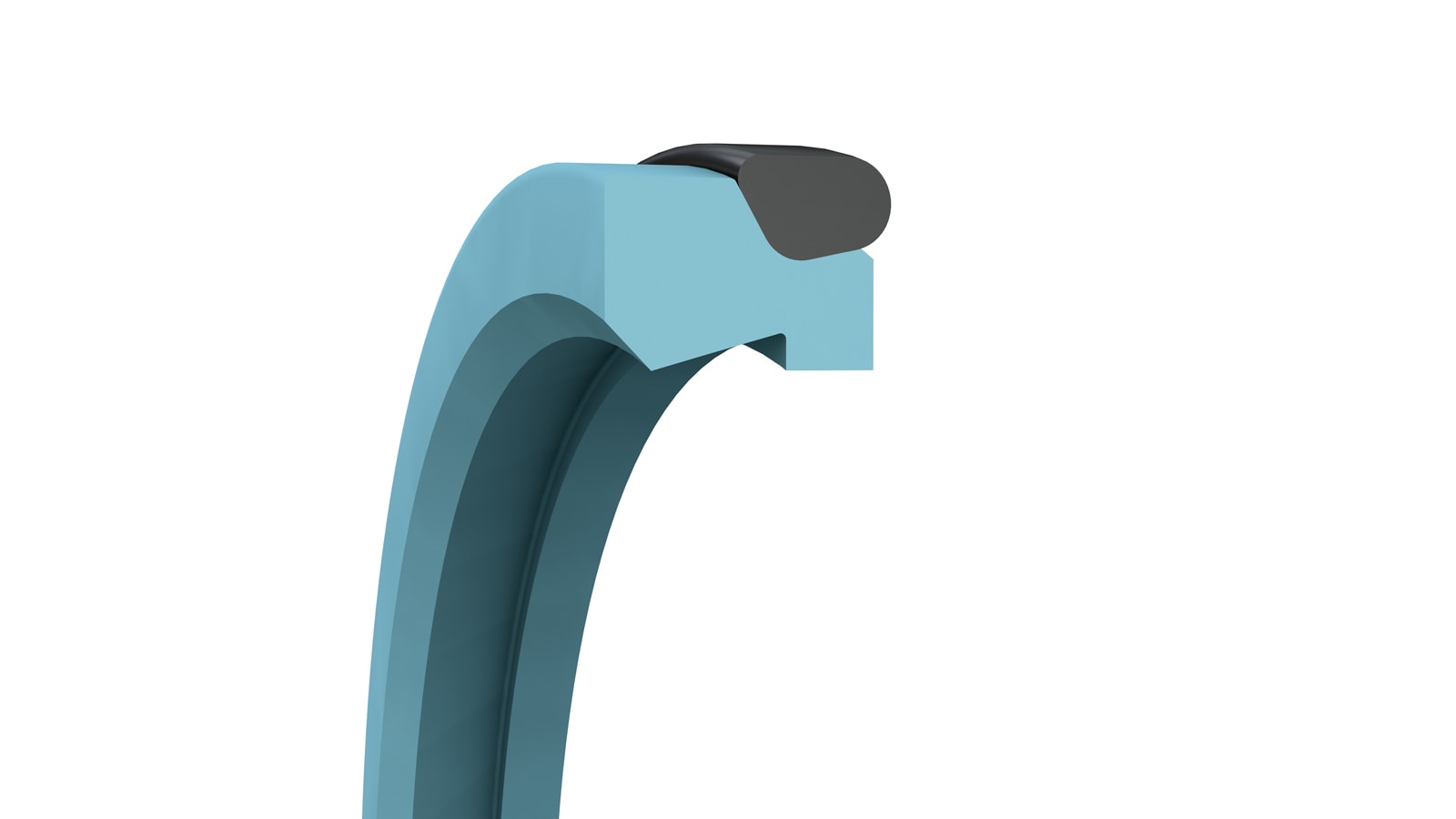

Excluder® 5 - Including O-Ring - WE5201000-Z80N
Scrape/ Excluder®Turcon®:
TSS Article Number (3 to 9)5201000
Signature StandardWE5201000-Z80N
Quality (10th Digit)-
Compound codeZ80N
Groove Diameter Outside112.2 mm
Groove Diameter Inside100 mm
Groove Width8.1 mm
Groove Thickness0 mm
Article GroupWE
Material Information for the product(s) on this page
N7083
Color:
Black
Hardness unit:
Shore A
Hardness Tolerance:
+/- 5
Gravity Tolerance:
+/-0.02
Maximum Temperature:
100
Shore A Hardness:
70+/- 5
Material:
N7083
Minimum Hardness:
70
Maximum Hardness:
70
Minimum Temperature:
-30
Gravity Unit:
g/cm³
Material Type:
NBR
Specific Gravity:
1.24
Material Code Class:
Elastomer
Z80
Maximum Temperature:
80
Ball Hardness:
29
Material Code Class:
Thermoplastic
Material:
Z80
Gravity Tolerance:
+/-0.01
Color:
White to Offwhite
Specific Gravity:
0.93
Minimum Temperature:
-200
Material Type:
UHMW PE
Gravity Unit:
g/cm³
