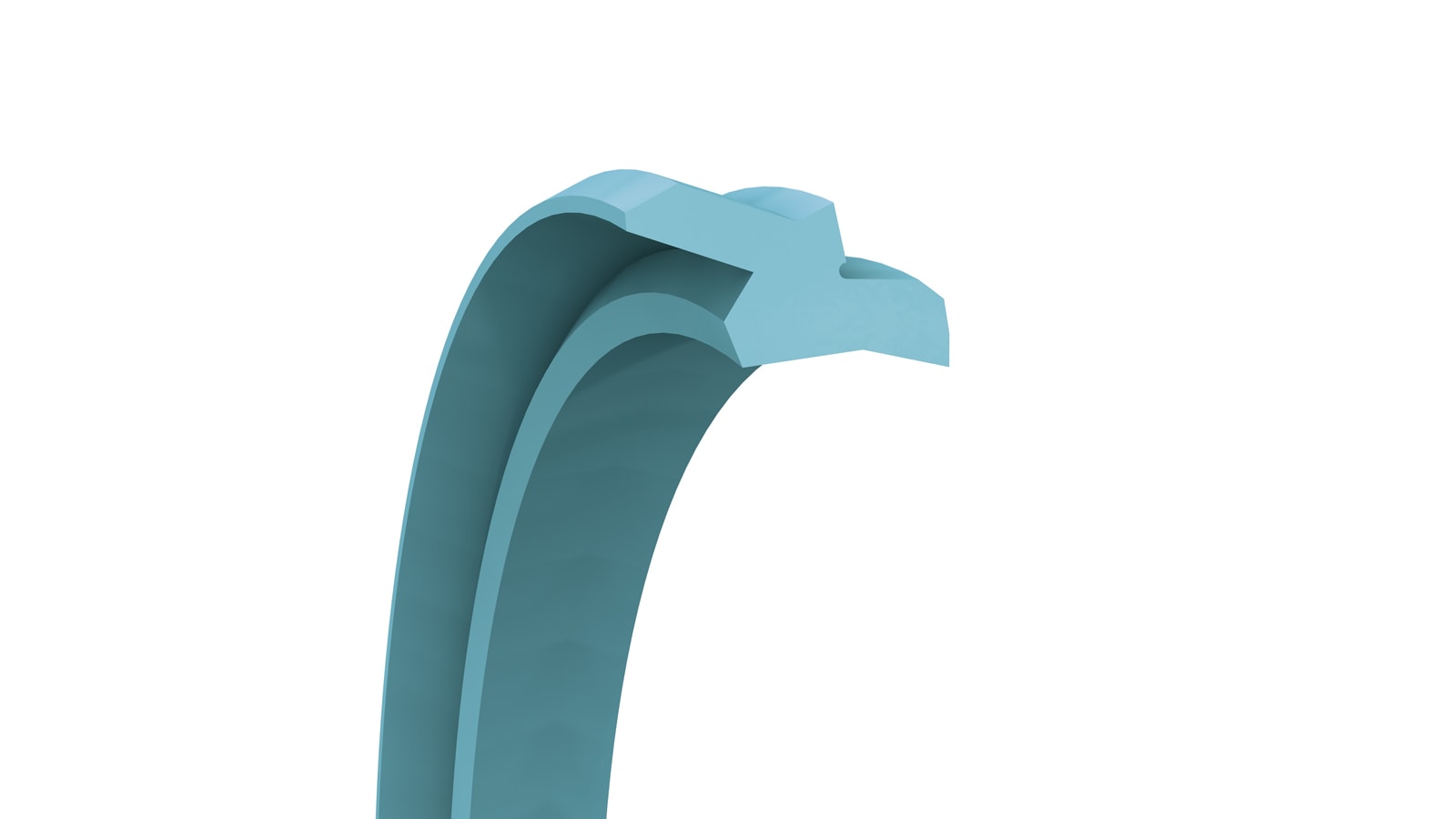

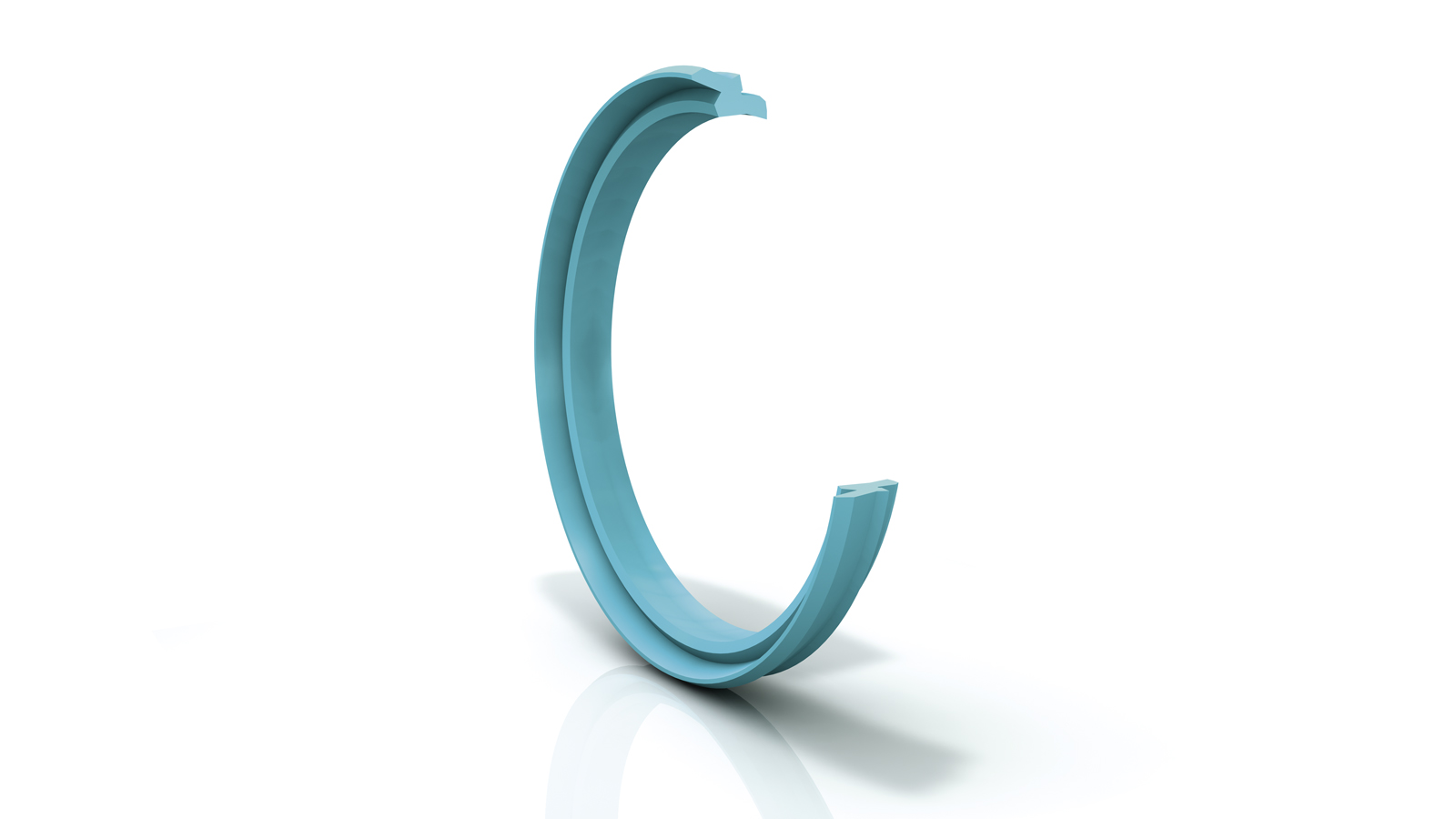

Zurcon® Scraper DA24 - WD2410950-Z221
Scraper/Double DA:
TSS Article Number (3 to 9)2410950
Signature StandardWD2410950-Z221
Type of Article0
Quality (10th Digit)-
Root Groove Inside Diameter95 mm
Root Groove Outside Diameter107.2 mm
Compound codeZ221
Root Groove Width8.1 mm
Groove Diameter Outside107.2 mm
Groove Width8.1 mm
Groove Diameter Inside95 mm
Groove Thickness6.1 mm
Article GroupWD
Material Information for the product(s) on this page
Z221
Z221 Engineering Data Sheet_Ed1_rev0Z221 Specification_Ed1_rev0
Material Code Class:
Thermoplastic
Maximum Temperature:
100
Gravity Tolerance:
+/-0.02
Specific Gravity:
1.16
Minimum Temperature:
-50
Color:
Darkturquoise
Material:
Z221
Gravity Unit:
g/cm³
Hardness Tolerance:
+/- 3
Material Type:
PUR
Shore A Hardness:
92+/- 3
Hardness unit:
Shore A
Maximum Hardness:
92
Minimum Hardness:
92
