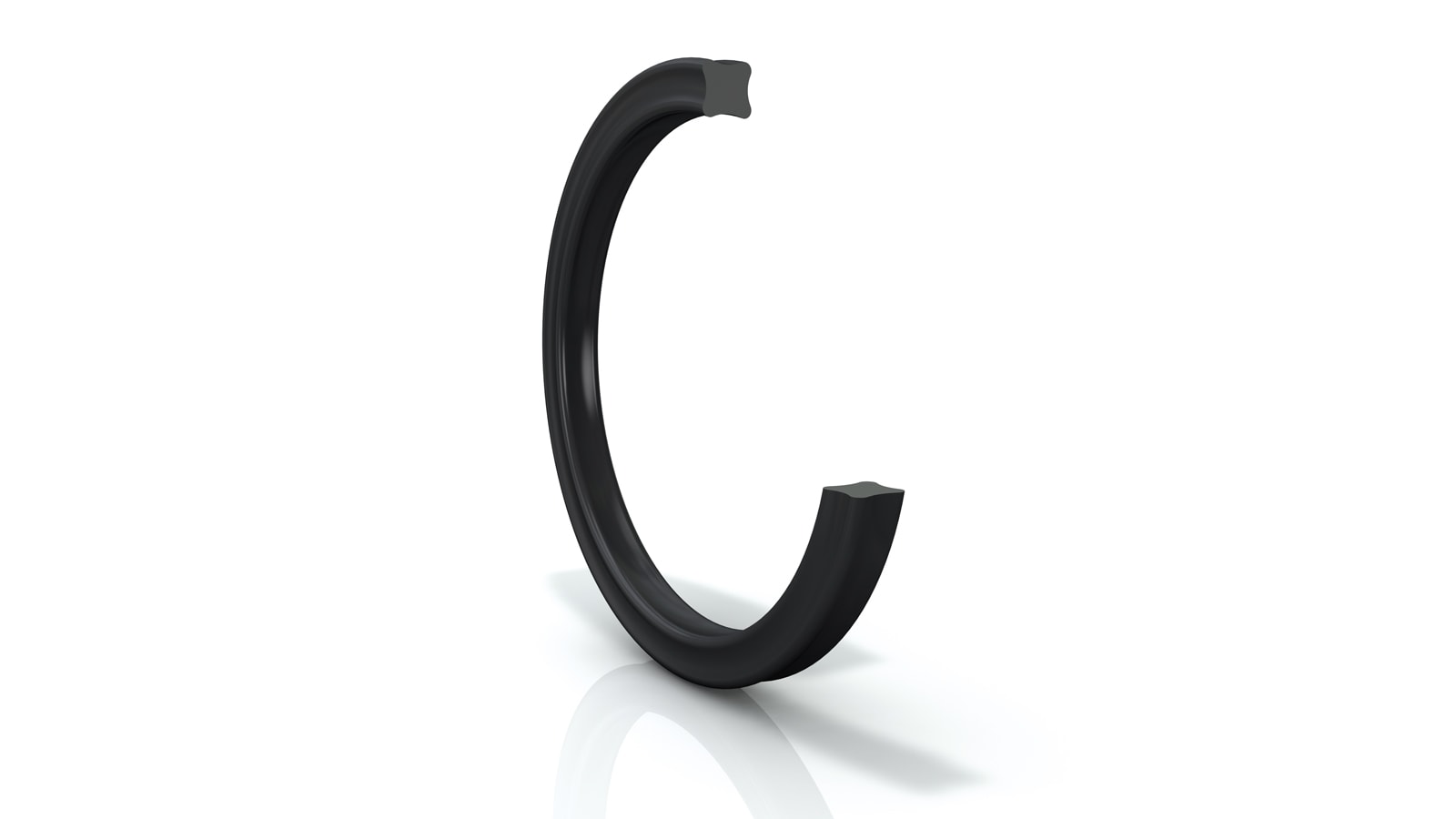

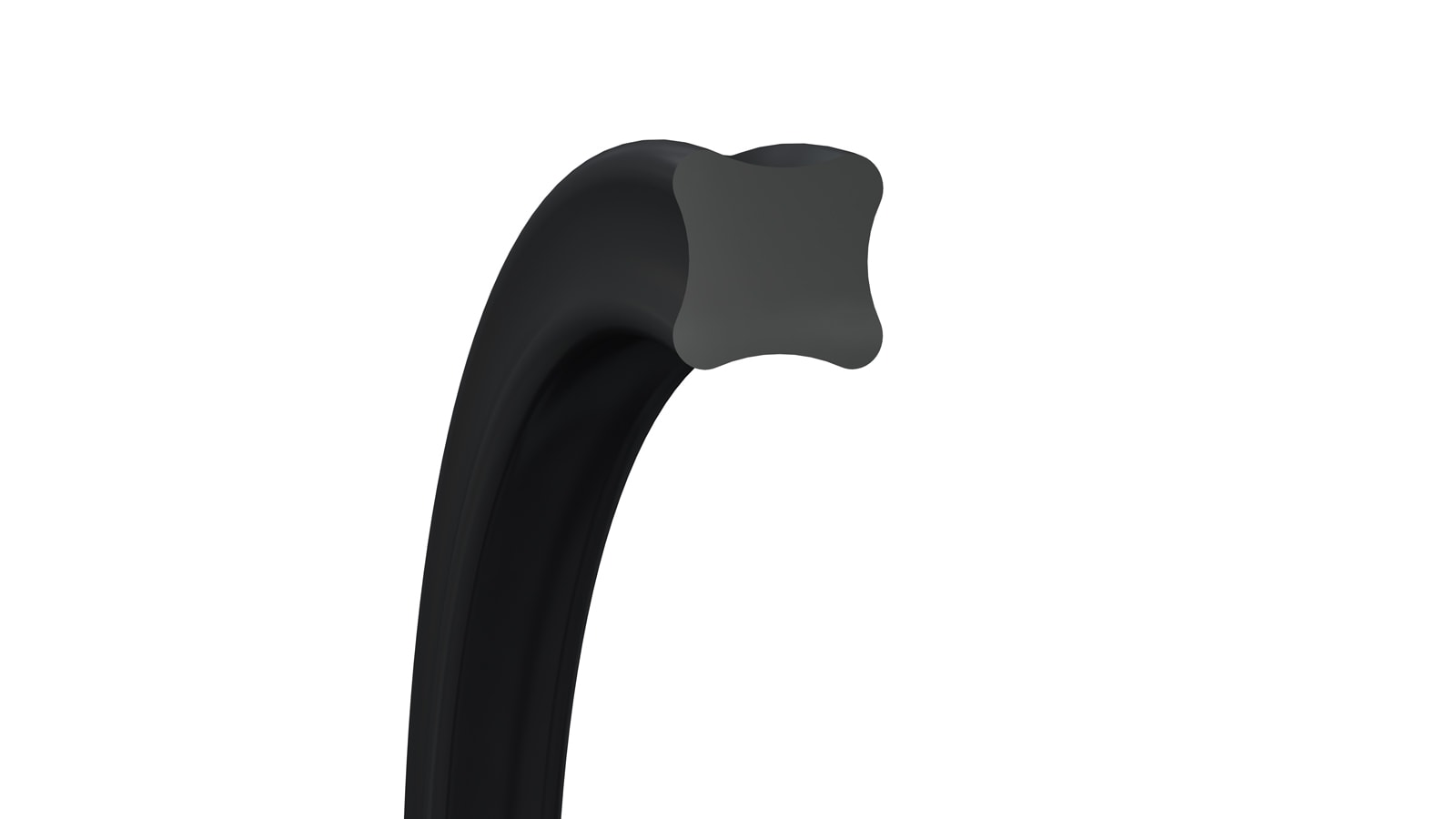

Quad-Ring® - QRAR04017-V7002
Quad-Ring®-standard:
Ring Diameter Inside17.17 mm
TSS Article Number (3 to 9)AR04017
Type of Article0
Signature StandardQRAR04017-V7002
Quality (10th Digit)-
Root Ring Inside Diameter17.17 mm
Compound codeV7002
Ring Width1.78 mm
Root Ring Width1.78 mm
Article GroupQR
Material Information for the product(s) on this page
V7002
Material:
V7002
Hardness Tolerance:
+/- 5
Minimum Hardness:
70
Material Type:
FKM
Maximum Hardness:
70
Maximum Temperature:
200
Specific Gravity:
1.85
Color:
Black
Material Code Class:
Elastomer
Minimum Temperature:
-20
Gravity Tolerance:
+/-0.03
Gravity Unit:
g/cm³
Shore A Hardness:
70+/- 5
Hardness unit:
Shore A
